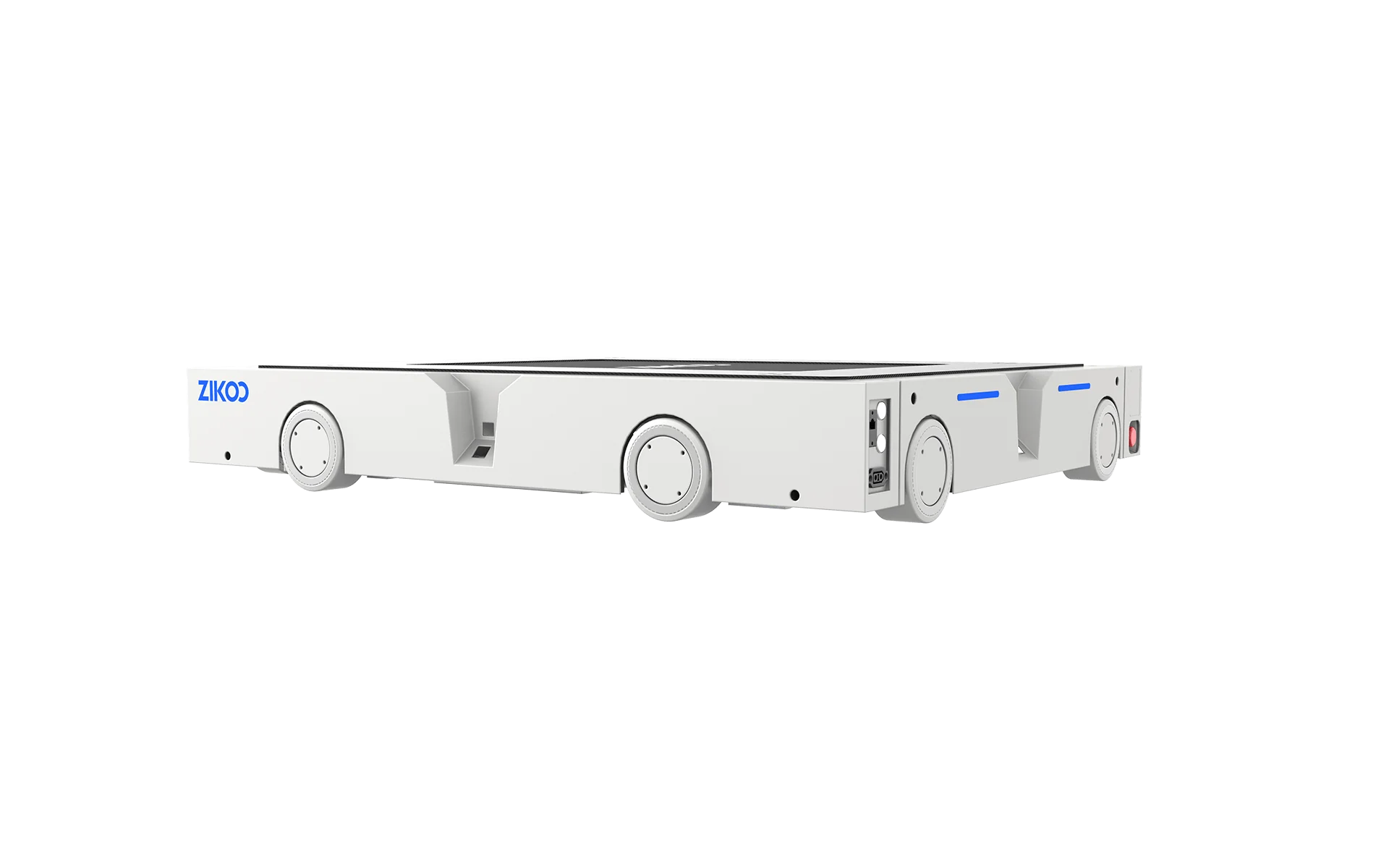

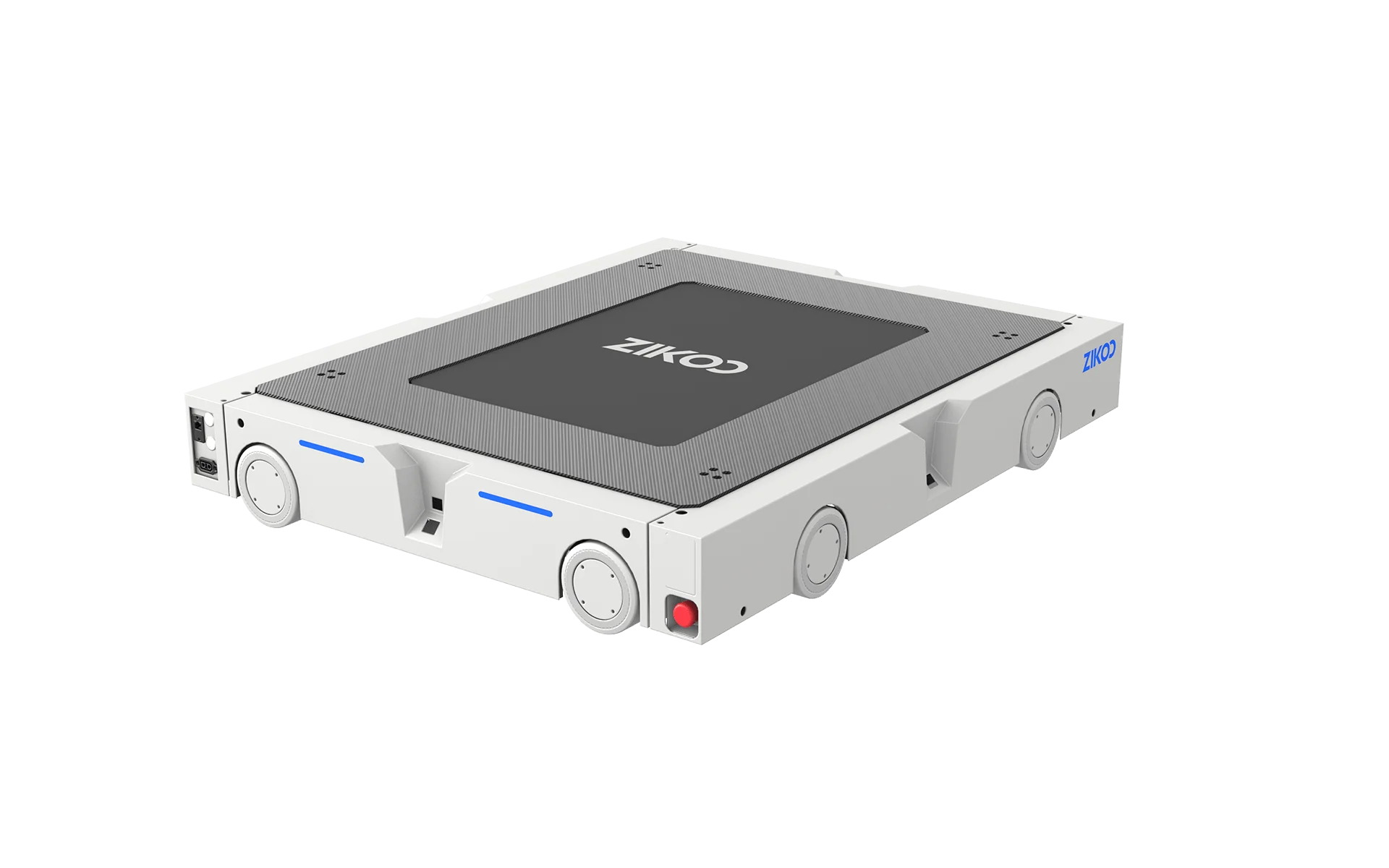

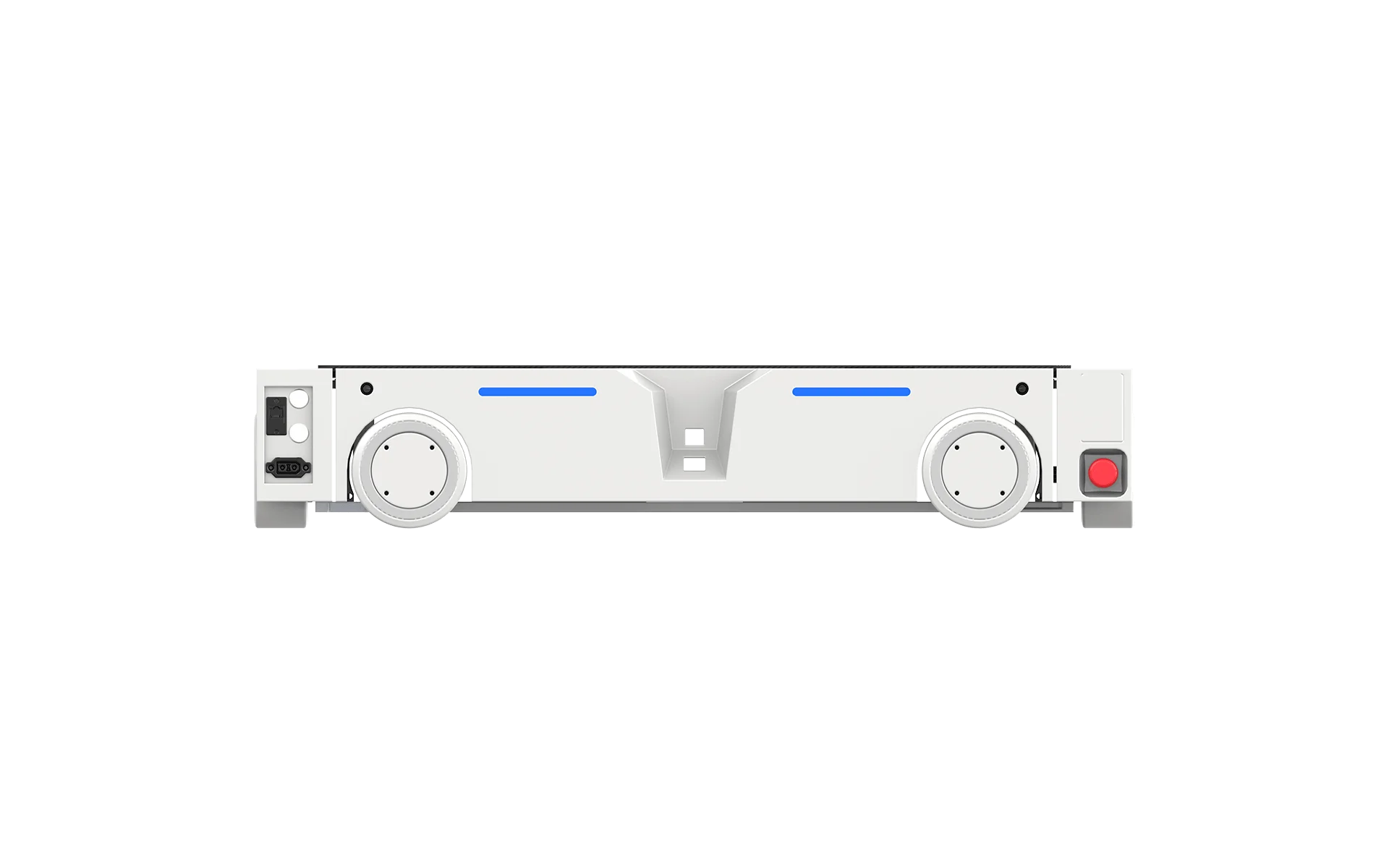

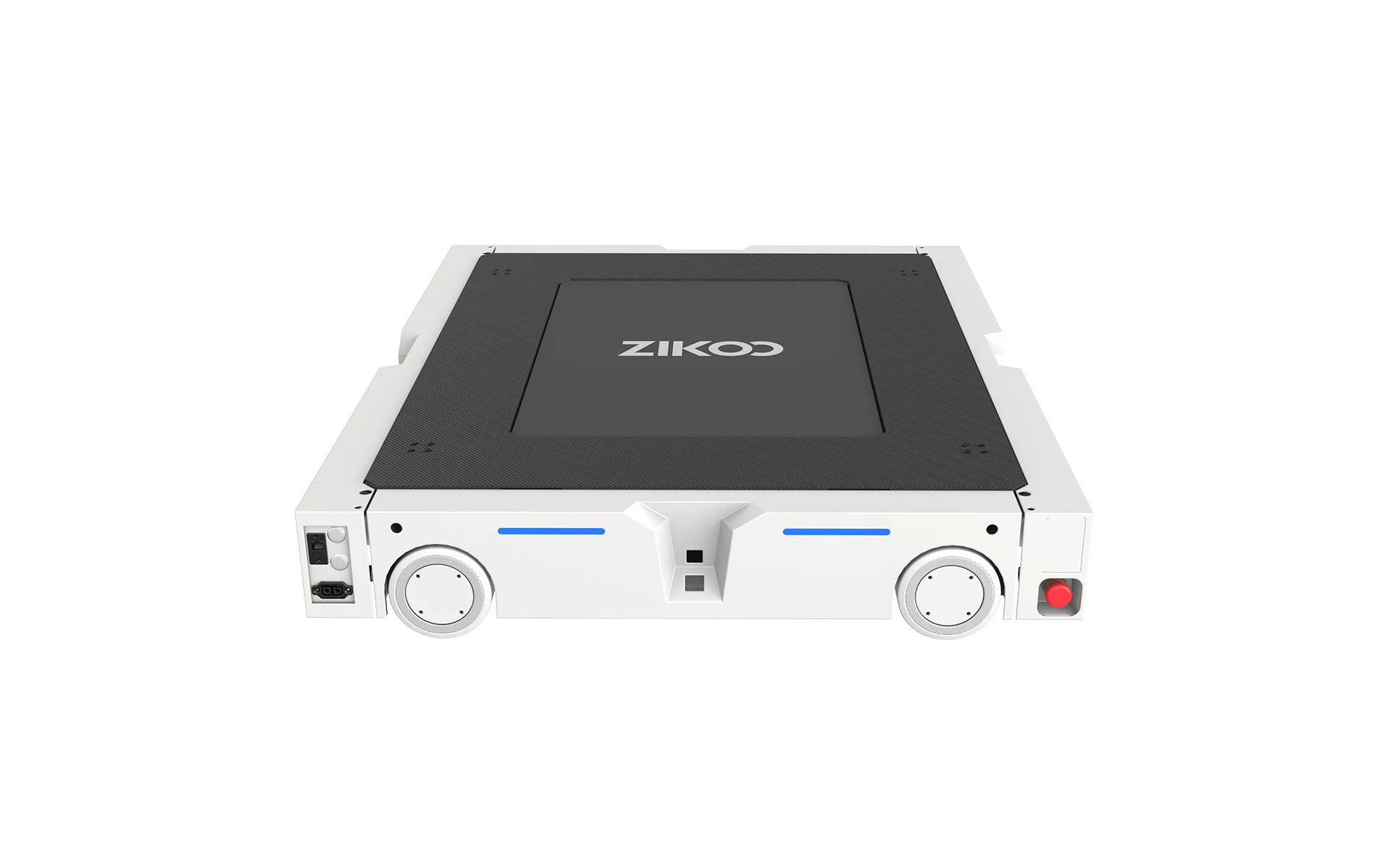

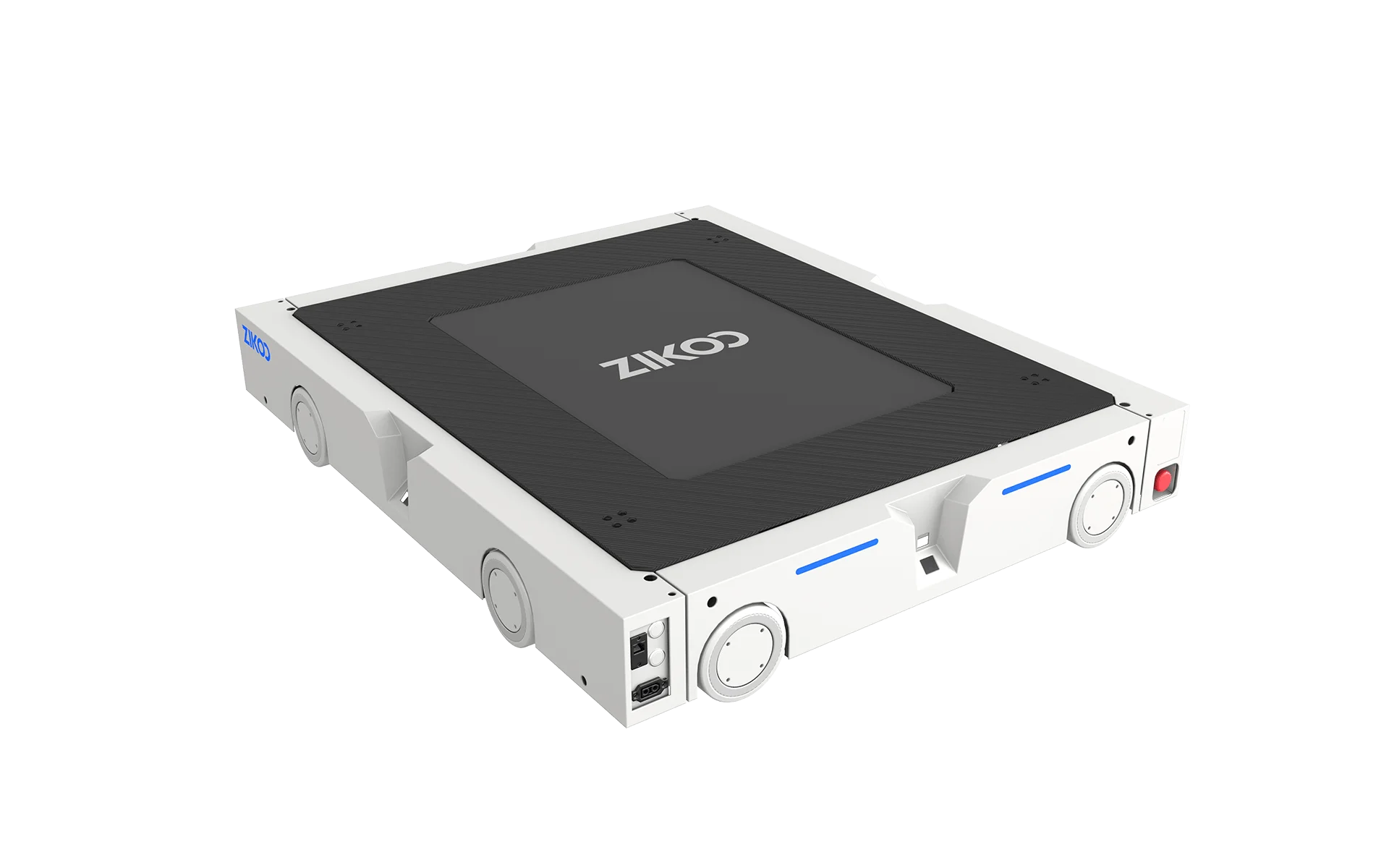

The R-bot Four-Way Pallet Shuttle is designed for high-density pallet storage and automated warehouse systems. It can travel in four directions, handle pallets automatically, and work with multiple shuttles to improve storage efficiency and throughput.
The system integrates with vertical shuttles and intelligent warehouse software to form a complete automated storage and retrieval system (ASRS), enabling flexible layout design and efficient pallet-to-person operations. It is widely used in logistics, manufacturing, food, and cold storage warehouses to achieve higher storage density and reliable automation.
The R-bot Four-Way Pallet Shuttle combines advanced mechanical design, intelligent control, and high-precision positioning to ensure fast, stable, and reliable operation in high-density automated warehouse systems.
The technical specifications below outline the performance characteristics of the R-bot Four-Way Shuttle, designed for reliable operation in high-density and fully automated warehouse environments.
| Type | Model | Unit | R1500MF | R1000MA | R1000LA | R1500MA | R1500LA | |||||
| Parameters | Weight | Kg | 260 | 275 | 285 | 315 | 325 | |||||
| Rated load | Kg | 1500 | 1000 | 1000 | 1500 | 1500 | ||||||
| Body dimensions | mm | L1000*W900*H152 | L960*W760*H152 | L960*W960*H152 | L960*W760*H178 | L960*W960*H178 | ||||||
| Applicable pallet sizes | mm | 1100~1400*800~1200 | 1200*1000 | 1200*1200 | 1200*1000 | 1200*1200 | ||||||
| Performance Indicators | Navigation | – | RFID + Magnetic Induction+ Encoder | RFID + Magnetic Induction+ Encoder | RFID + Magnetic Induction+ Encoder | RFID + Magnetic Induction+ Encoder | RFID + Magnetic Induction+ Encoder | |||||
| Positioning accuracy | mm | ±1 | ±1 | ±1 | ±1 | ±1 | ||||||
| Travel Aisle No/Full-Load Speed | m/s | 2.5/1.8 | 2.5/1.8 | 2.5/1.8 | 2.5/1.8 | 2.5/1.8 | ||||||
| Pallet Lane No/Full-Load Speed | m/s | 2.5/1.8 | 2.5/1.8 | 2.5/1.8 | 2.5/1.8 | 2.5/1.8 | ||||||
| No/Full-Load Maximum Acceleration | m/s² | 2/0.3 | 2/0.3 | 2/0.3 | 2/0.3 | 2/0.3 | ||||||
| No/Full-Load Reversing Time | s | 1.5/2.5 | 1.5/2.5 | 1.5/2.5 | 1.5/2.5 | 1.5/2.5 | ||||||
| Lifting time | s | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||||||
| Battery Indicator | Applicable temperature | ℃ | -15~45 | -25~0 | -15~45 | -25~0 | -15~45 | -25~0 | -15~45 | -25~0 | -15~45 | -25~0 |
| Battery capacity | V/Ah | 51.2V/30Ah | 51.2V/30Ah | 51.2V/30Ah | 51.2V/30Ah | 51.2V/30Ah | 51.2V/30Ah | 51.2V/30Ah | 51.2V/30Ah | 51.2V/30Ah | 51.2V/30Ah | |
| Duration at full charge | h | 8-10 | 6-8 | 8-10 | 6-8 | 8-10 | 6-8 | 8-10 | 6-8 | 8-10 | 6-8 | |
| Fully charging time | h | 1.2 | 2.5 | 1.2 | 2.5 | 1.2 | 2.5 | 1.2 | 2.5 | 1.2 | 2.5 | |
| Type of batteries | – | Lithium-iron phosphate battery | Lithium-iron phosphate battery | Lithium-iron phosphate battery | Lithium-iron phosphate battery | Lithium-iron phosphate battery | ||||||
| Product Certification | Certificate type | – | CE、UL | CE、UL | CE、UL | CE、UL | CE、UL | |||||

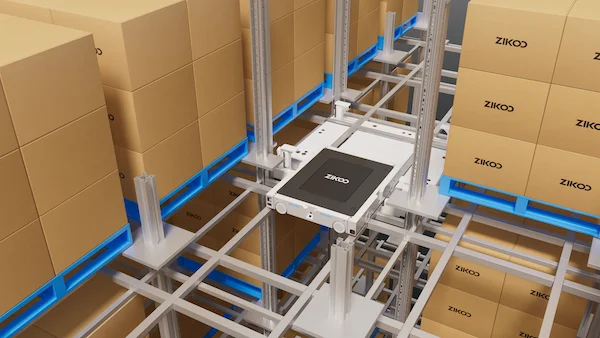

The Four-Way Shuttle can access any location within the stereoscopic warehouse without being restricted by fixed paths, making it suitable for a variety of complex scenarios.
Replacing traditional elevators, the Vertical Two-Way Shuttle requires no complex electrical setup, ensuring safe, reliable, and maintenance-friendly operation in automated warehouse systems.
It can be integrated with elevators, conveyors, and other equipment, allowing for the efficient scheduling of multiple vehicles on the same floor, as well as smart scheduling among various devices.
Ideal for dense storage of pallets, significantly enhancing space efficiency and reducing land costs.
The Four-Way Pallet Shuttle functional modules include emergency rescue, intelligent charging, and remote control systems, ensuring convenient maintenance, safe operation, and stable performance in automated warehouse environments.
With specialized rescue tooling, a malfunctioning shuttle can be lifted, removed from the storage rack and transported to a repair facility by coordinating with other shuttles. This process is both streamlined and efficient, enabling the rapid completion of rescue operations in just 10 minutes.
The modular design enables rapid fault diagnosis within 5 minutes. With readily available spare parts, damaged components can be replaced in 20 to 60 minutes, allowing the shuttle to return to service promptly.

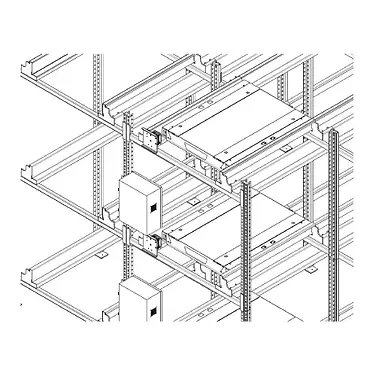

The charging stations feature a connector designed for over 100,000 plug-in cycles, ensuring safety, stability and reliability.
The independently developed charging strategy accommodates a wide range of temperatures, from -25°C to 45°C, enhancing charging safety. Real-time monitoring capabilities cover the status of the charging stations, and include protective measures against short circuits, overload, overheating, overvoltage and overcurrent.
Operating independently of WiFi networks, our remote control uses a long-distance communication solution that ensures extended transmission ranges and improved penetration within storage racks.
It features a status display and a user-friendly interface for easier interaction. The remote control system can connect to multiple devices and only requires one unit per warehouse to manage them all.
