H-bot | Smart Vertical Shuttle
Rated load
Applicable temperature
Max lifting speed
Positing accuracy

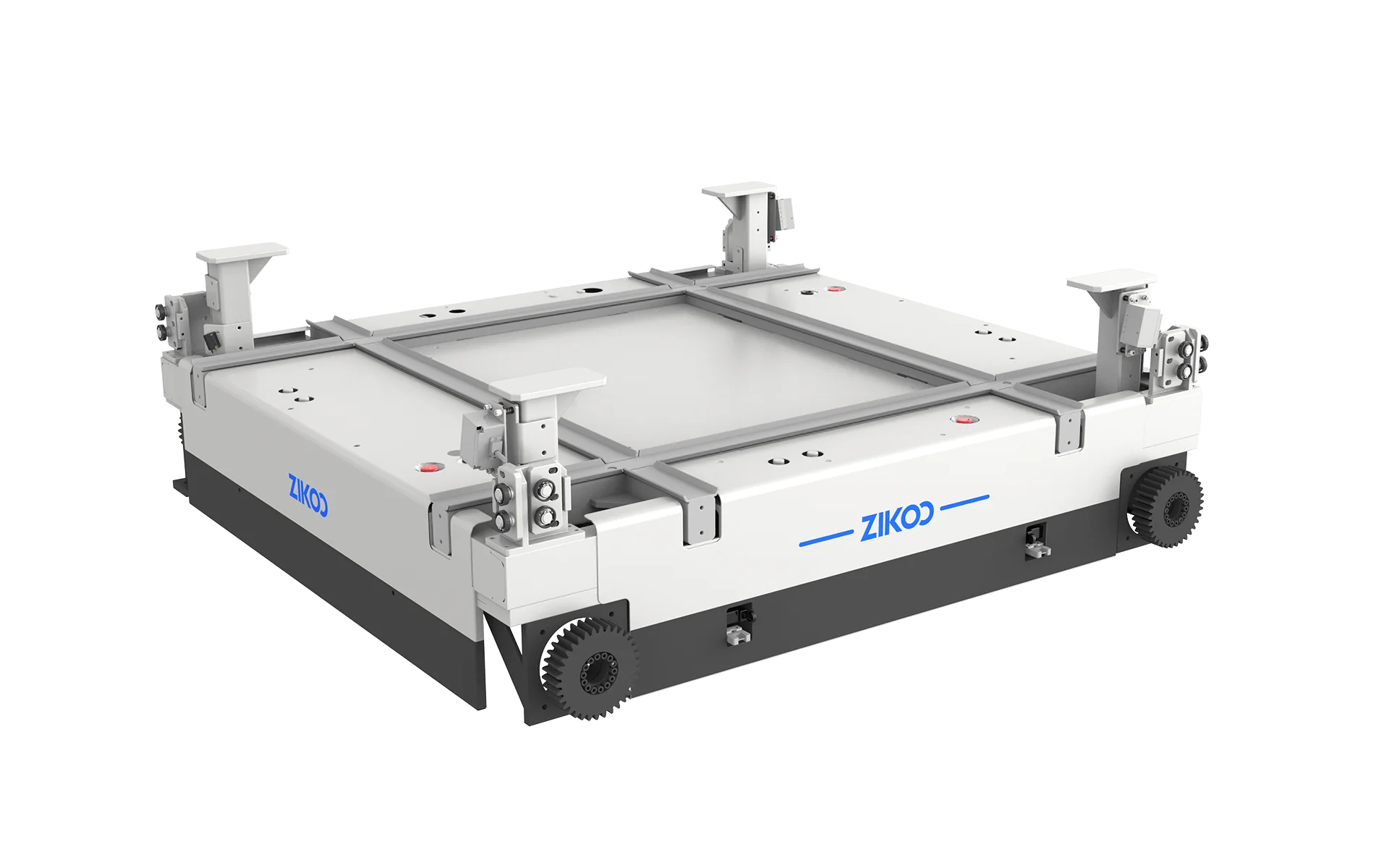

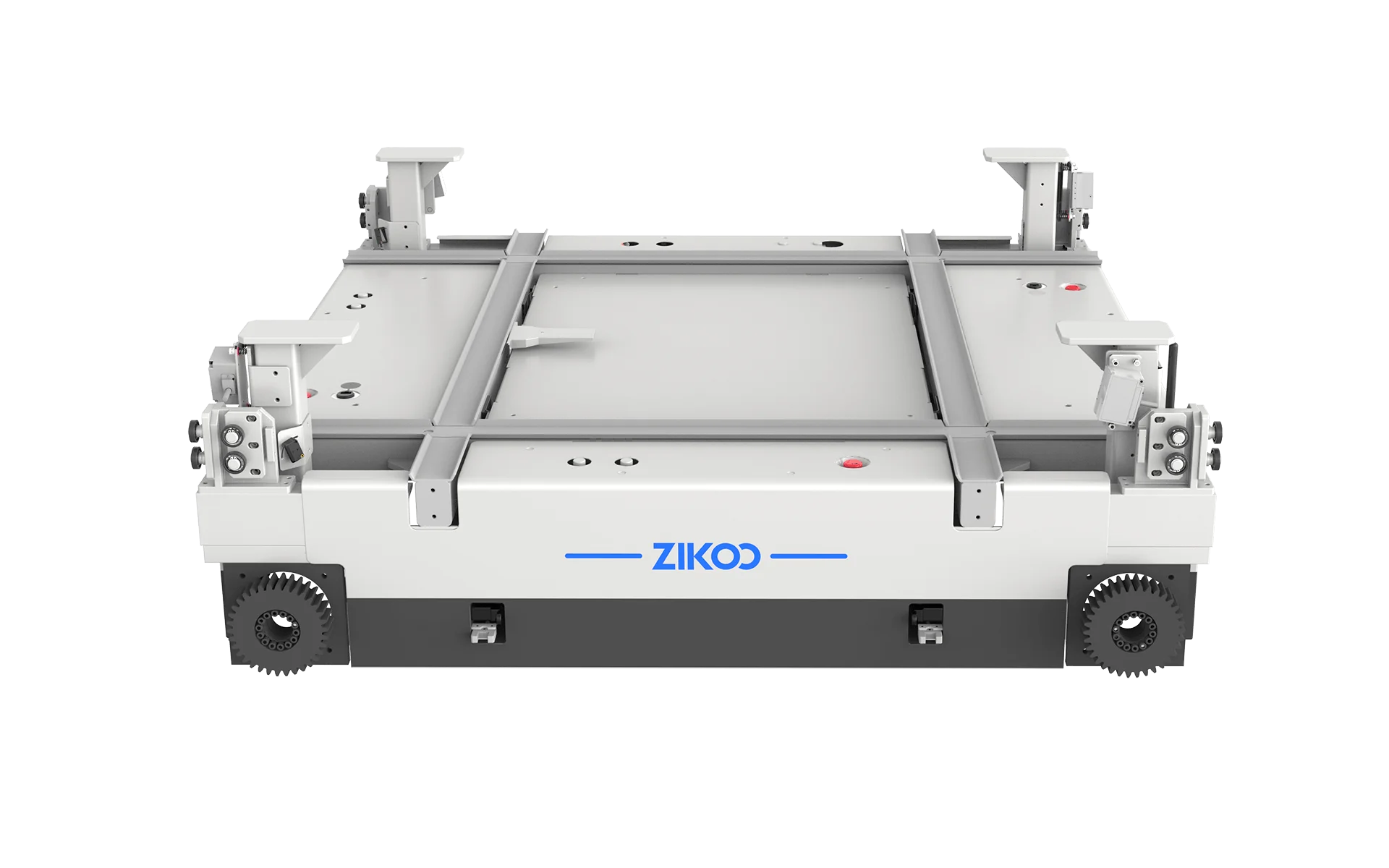

The H-bot Vertical Two-Way Shuttle is an intelligent warehouse robot designed for high-density pallet storage and pallet-to-person operations. Equipped with a vertical lifting system and flexible layout design, it enables fast and efficient material transfer between different levels of the warehouse.
Working together with the R-bot Four-Way Pallet Shuttle, the system forms a six-way shuttle solution that allows goods to move both horizontally and vertically, maximizing space utilization and improving overall warehouse efficiency. By replacing traditional elevators and conveyor systems, the H-bot provides a more compact, flexible, and cost-effective solution for modern automated warehouses.
Key technical parameters of the Vertical Two-Way Shuttle, including load, speed, lifting height, and operating environment, ensuring reliable performance in automated warehouse systems.
| Type | Model | Unit | H1500SF | H1500MF | H1500LF | H1000XA | H1500XA | |||||
| Parameters | weight | Kg | 470 | 470 | 470 | 450 | 470 | |||||
| Rated load | Kg | 1800 | 1800 | 1800 | 1300 | 1800 | ||||||
| Body dimensions | mm | L1423*W1090*H450 | L1423*W1290*H450 | L1323*W1190*H450 | L1472*W1471*H288 | L1472*W1471*H288 | ||||||
| Applicable pallet sizes | mm | 1200*800~1000 | 1200*1000~1200 | 1100*1000~1100 | 1200*1000~1200 | 1200*1000~1200 | ||||||
| Applicable temperature | ℃ | -15~45 | -25~0 | -15~45 | -25~0 | -15~45 | -25~0 | -15~45 | -25~0 | -15~45 | -25~0 | |
| Performance Indicators | Positioning accuracy | mm | ±1 | ±1 | ±1 | ±1 | ±1 | |||||
| Empty/full load speed | m/s | 1/0.5 | 1/0.5 | 1/0.5 | 1/0.5 | 1/0.5 | ||||||
| Acceleration | m/s² | 1/0.3 | 1/0.3 | 1/0.3 | 1/0.3 | 1/0.3 | ||||||
| Battery Indicator | Total power | KW | 16 | 16 | 16 | 16 | 16 | |||||
| Control mode | – | Servo | Servo | Servo | Servo | Servo | ||||||
| Transmission mode | – | rack and pinion | rack and pinion | rack and pinion | rack and pinion | rack and pinion | ||||||
| Product Certification | Certificate type | – | CE、UL | CE、UL | CE、UL | CE、UL | CE、UL | |||||
The Vertical Two-Way Shuttle adopts advanced control systems, high-precision positioning, and reliable lifting technology to ensure stable, efficient, and safe operation in automated warehouse environments.
When combined with the R-bot 4-Way Pallet Shuttle, the 2-Way Vertical Shuttle forms a complete Six-Way Shuttle system, enabling fully automated pallet-to-person operations and maximizing warehouse space utilization.
Replacing traditional elevators, the Vertical Two-Way Shuttle requires no complex electrical setup, ensuring safe, reliable, and maintenance-friendly operation in automated warehouse systems.
Ideal for high-density storage as well as integrated picking-storage workflows, the shuttle adapts to diverse warehouse layouts and operational needs, supporting modern ASRS and smart warehouse projects.
Powered by intelligent warehouse software, the Vertical Two-Way Shuttle enables remote operation, real-time monitoring, and optimized delivery scheduling for efficient and precise warehouse automation.
The Vertical Two-Way Shuttle offers faster delivery, lower cost, compact footprint, and flexible deployment compared to traditional elevators, making it ideal for high-density automated warehouses and pallet-to-person operations.
Vertical two-way shuttle VS Elevator
